Xhc Whb03b Nc Studio Cnc Wireless Handwheel 3 Axis Wireless Remote Control Weihong Control Syst

product content:

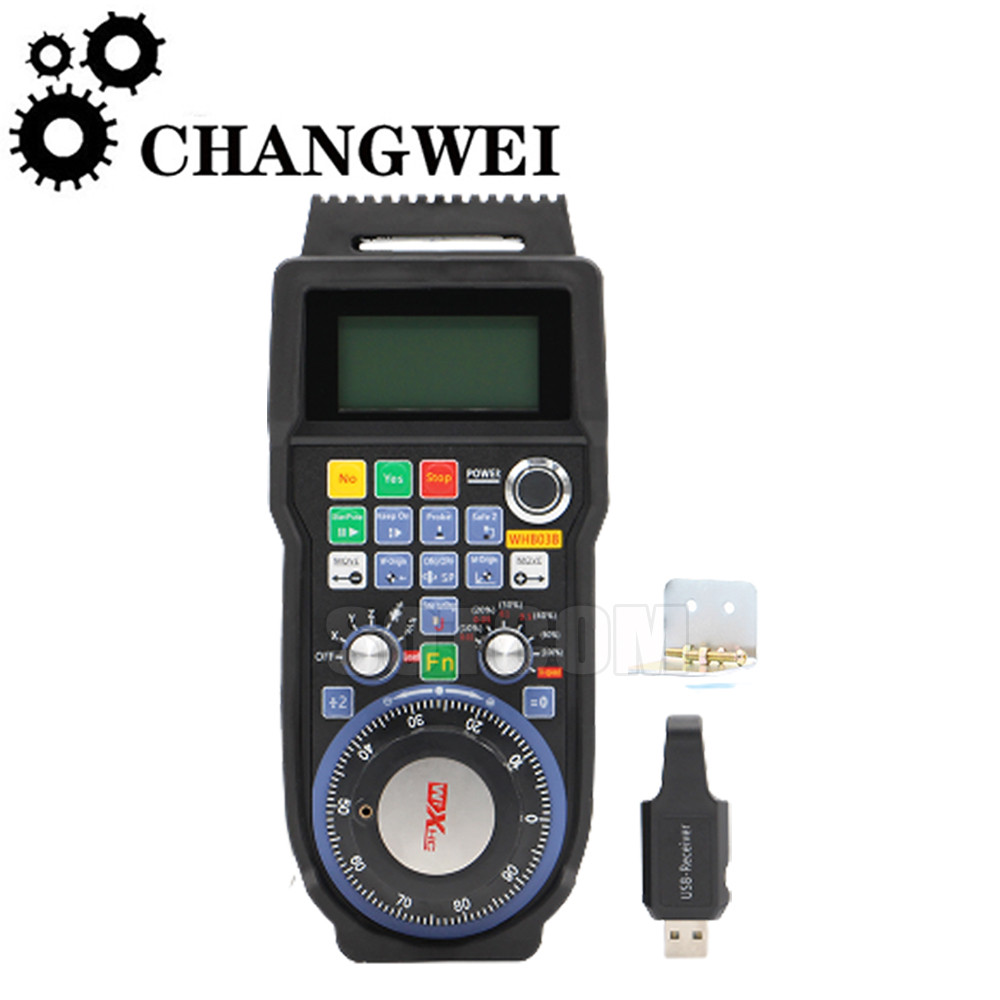

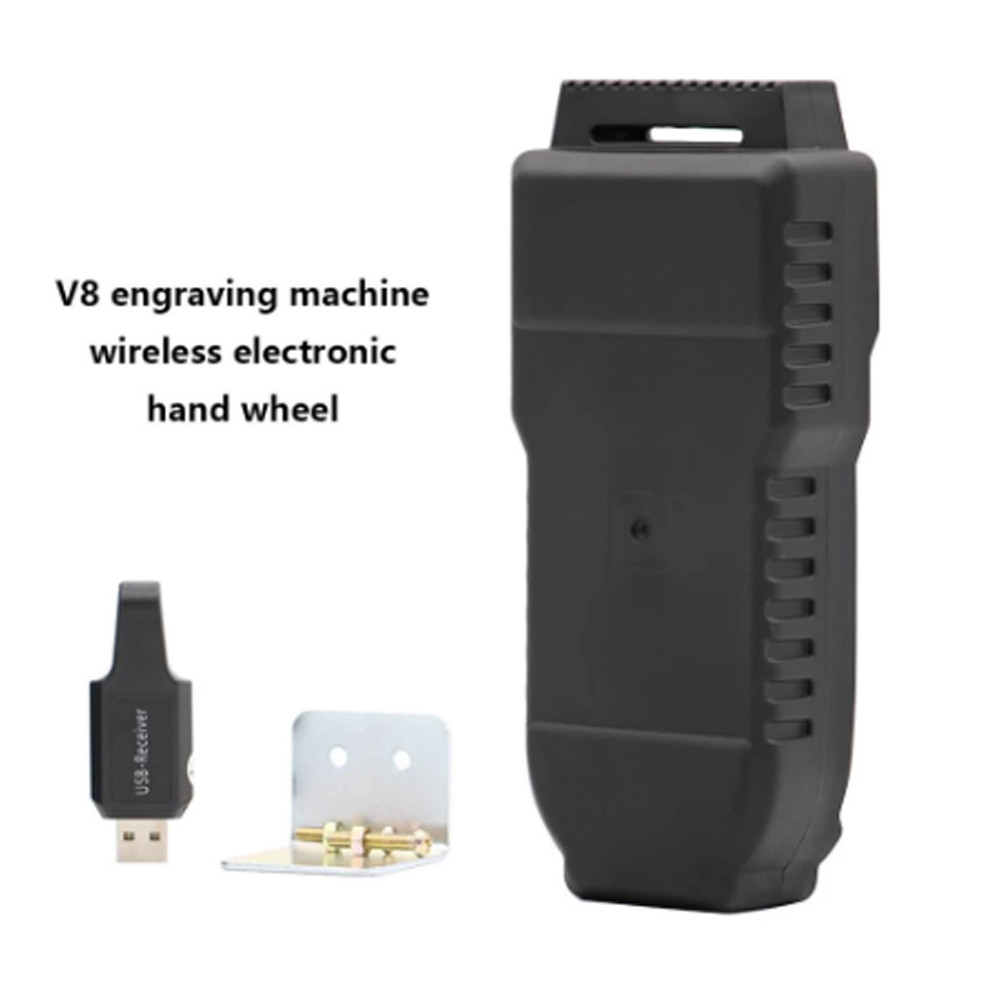

1 X 3Axis NC Studio Wireless Handwheel1 X USB Wireless Receiver
Parameters

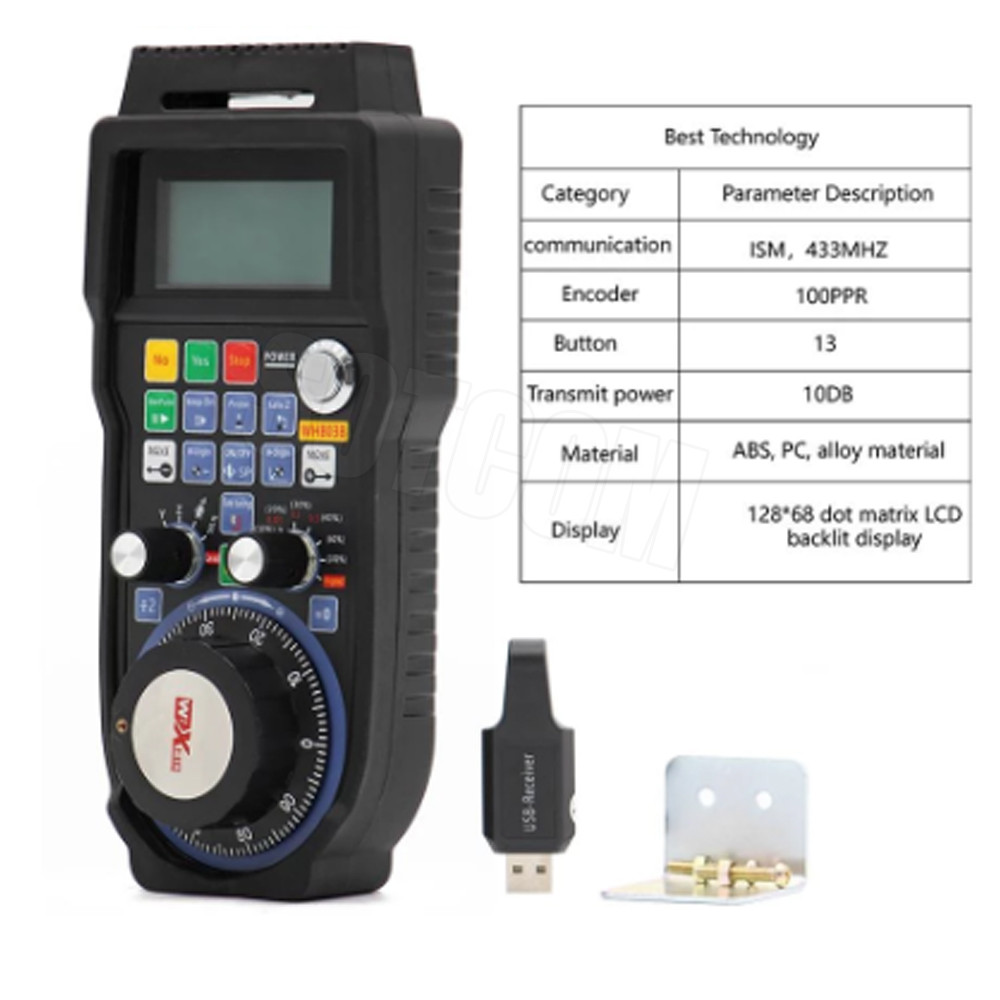

Category: Parameter DescriptionEncoder: 100PPRUSB cable: Wireless ReceiverButton: 13Display: Dot matrix LCD backlit displayMaximum number of axes: 3 AxisMaterial:ABS and PC materials, good resistance to drop and heat resistance
Feature

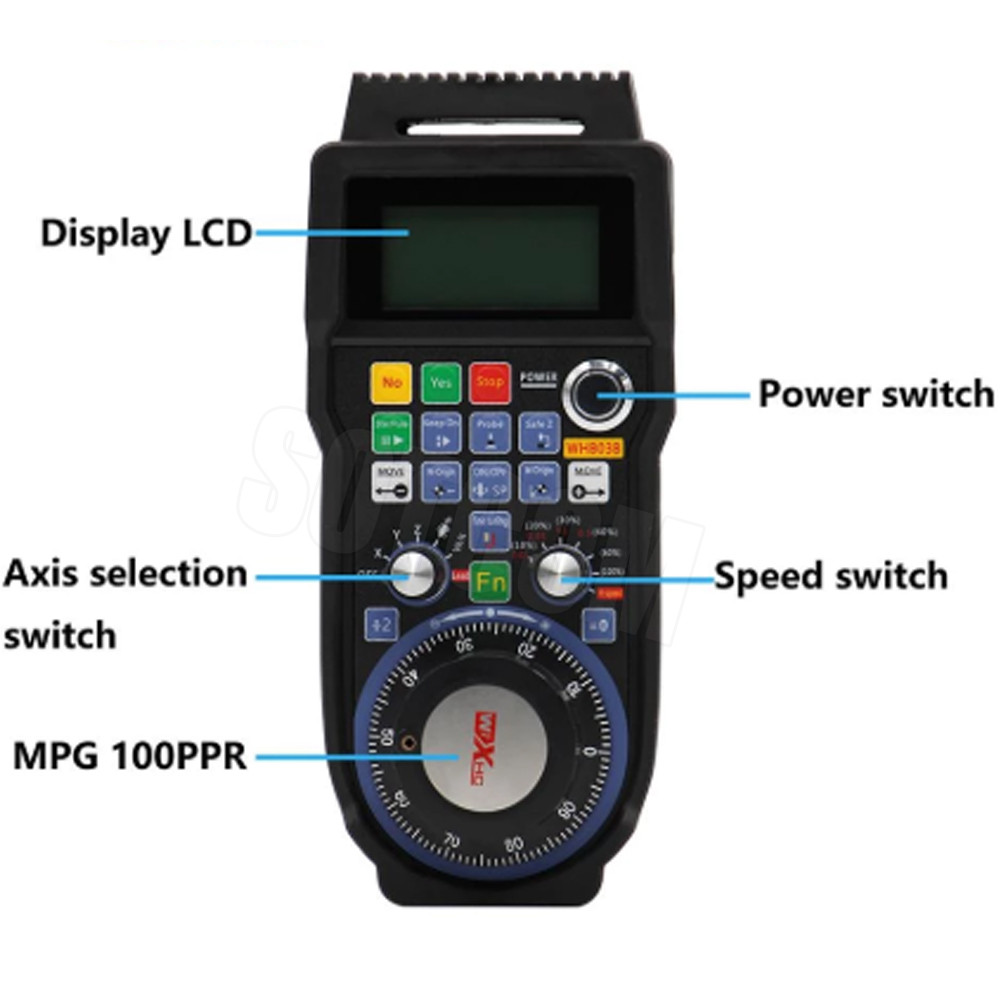

1 Adopt frequency hopping transmission, strong anti-interference abilityAdopt 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, accept sensitivity -98DB.With 32 frequency hopping channels, each channel is spaced 1MHZ.Data encryption transmission, automatic frequency hopping, automatic ID code learning.Frequency hopping transmission technology, the same room, can support 32 sets of equipment at the same time, do not affect each other.2 axis selection / rate band switch control The axis selection band switch realizes the closing of the electronic handwheel and the corresponding X Y Z A B C function selection control. The magnification selects the band switch step selection.3 stable and reliable performanceWith alloy encoder, the tooth position is clear and the positioning is accurate.ABS and PC materials, good resistance to tear and heat resistance.4 LCD displayThe LCD dot matrix backlight display frequency is used to grasp the current working state in real time.
