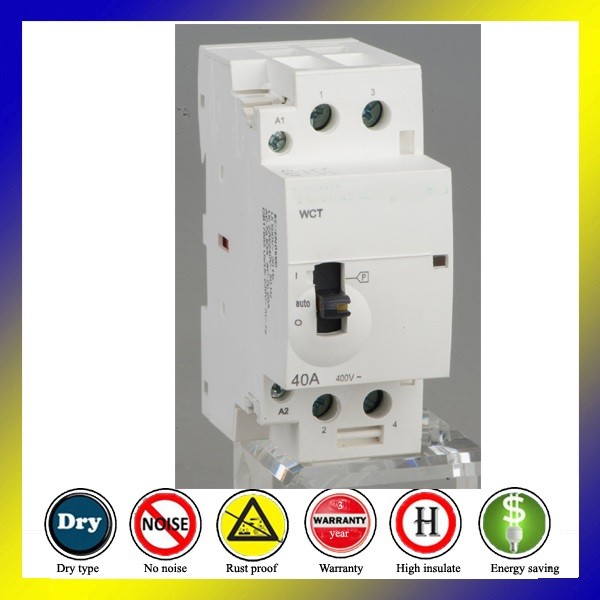

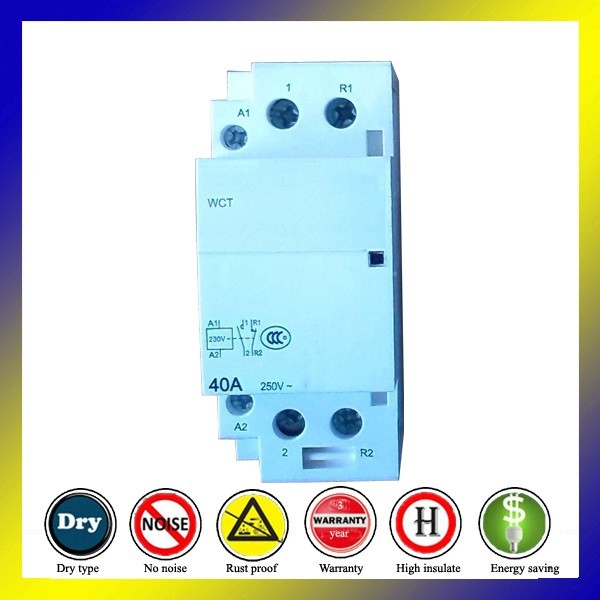

WCT 40A 2P 2NC 220V manual operate din rail modular electronic home mini household ac contact b7

Rated Current (A)
16,20, 25, 40,63,100
Rated Voltage (V)
230V 2P, 4P
400V 4P
Rated Frequency(Hz)
50/60Hz
Electrical endurance
30, 000 cycles
Mechanical endurance
100, 000 cycles
Ambient temp.
pillar terminal with clamp
Installation
On symmetrical DIN Rail
Technical data
Power circuit
Voltage rating (Ue)2P
230/240VAC/24V
Frequency
50HZ or 60Hz
Electrical
100,000 cycles
Maximum number of switching operation a day
100
Additional characteristics
Insulation voltage Ui
500VAC
Pollution degree
2
Rated impulse withstand voltage (Uimp)
2.5kv(4kv for 12/24/48VAC )
Degree of protection   device only
IP20
IEC60529     Device in modular enclosure
IP40
Operating temperature
-5 to 60 degree
Storage temperature
-40~70degree
Tropicalization (IEC60068-1)
Treatment 2 (relative humidity 95% at 55 degree )
ELSV compliance (extra low safety voltage )for 12/24/48vac versions
The products control confirms to the selv(safety extra low voltage )requirements
