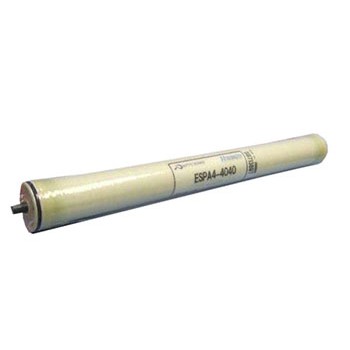

Hydranautics Membrane 4040 Espa3 / ESPA4

ESPA3-4040 Specifications:

Permeate Flow: 2500 gpd (11.4 m3/d)
Salt Rejection (nominal) 98.5 %
Type Configuration: Spiral Wound
Membrane Polymer: Composite Polyamide
Nominal Membrane Area: 85 ft2
The stated performance is initial (data taken after 30 minutes of operation), based on the following conditions:

1500 PPM NaCl solution
150 psi (1.05 MPa) Applied Pressure
77 °F (25 °C) Operating Temperature
15% Permeate Recovery
6.5 – 7.0 pH Range
Standard Operating Limits:

Maximum Applied Pressure: 600 psig (4.16 MPa)
Maximum Chlorine Concentration:
