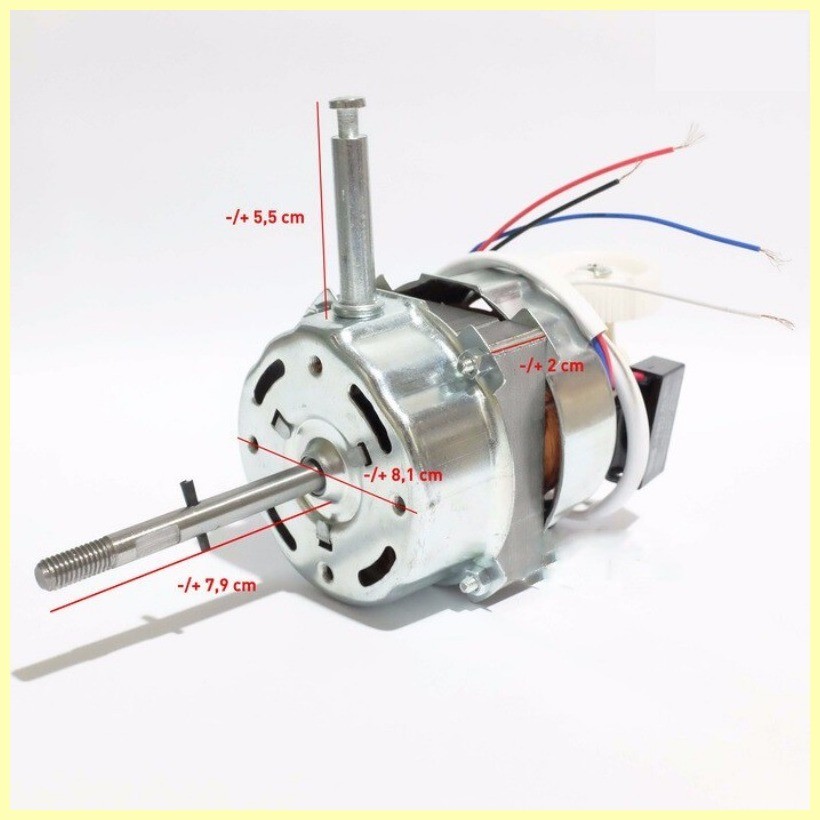

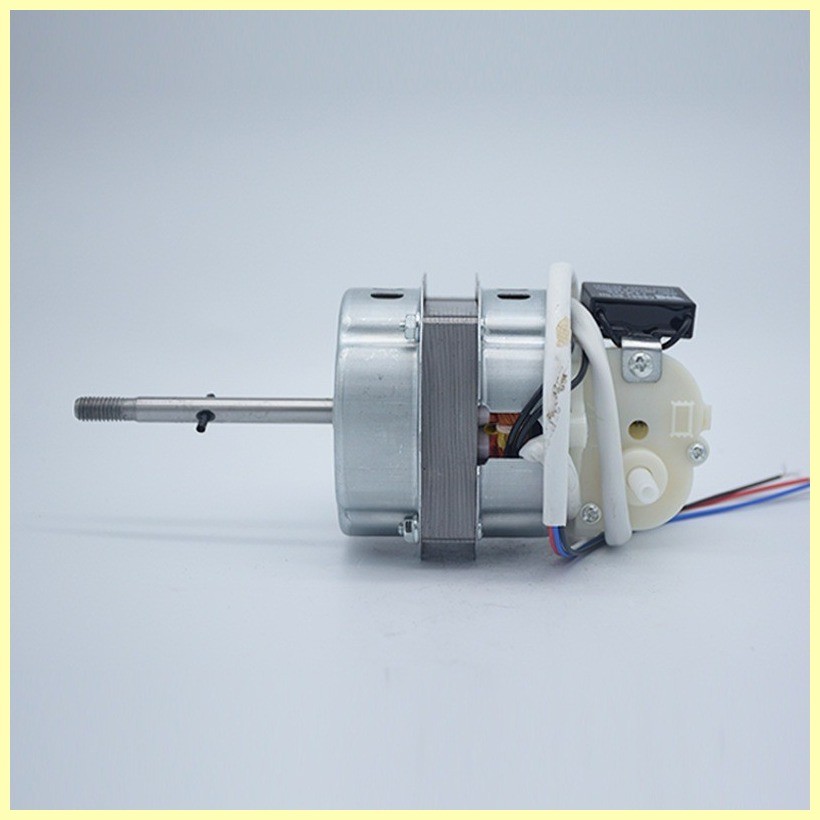

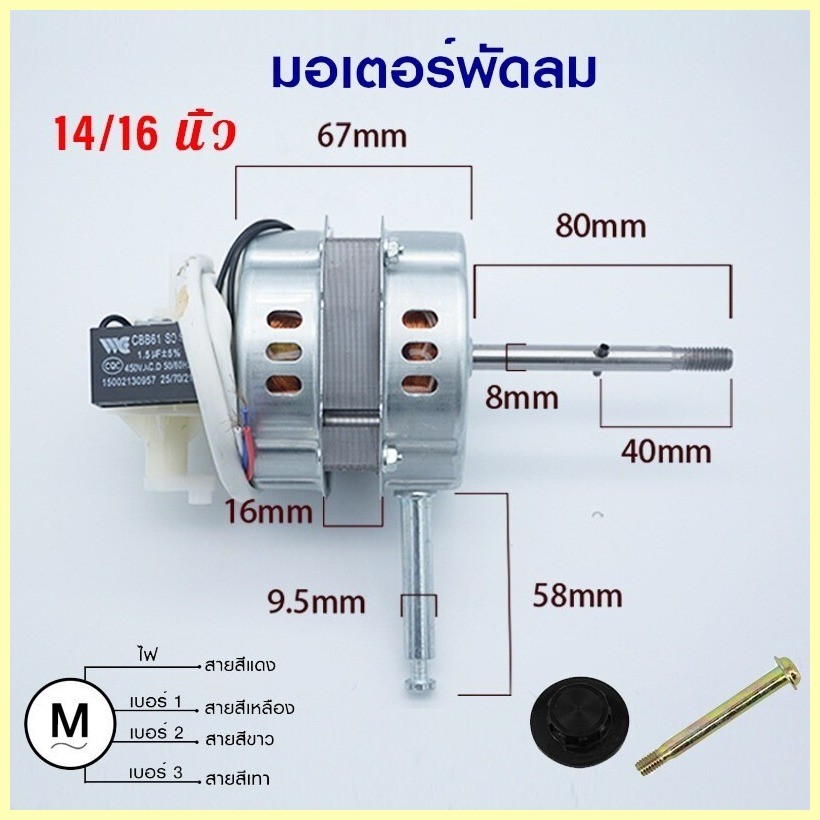

COD16″ Motor for Standfan Fan Motor Replacement 220V 71*16mm Electric Fan Motor Assembly

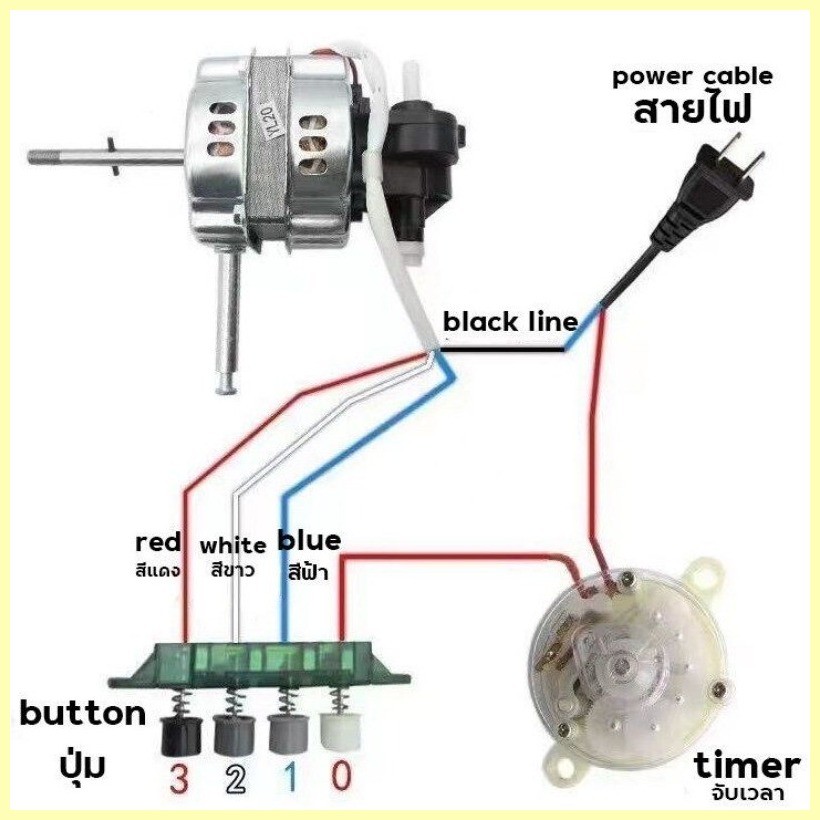

The following is the order of wiring:

Black wire: Zero / Stun / Ground

Blue Line: Speed 1 (Slow)

White Wire: Speed 2 (Medium)

Red Line: Speed 3 (Fast)

How to install: Directly connect the original Maspion cable:

(Left is Mapion’s original dynamo Right is the dynamo that the seller sells)

White wire: Find the black wire.

Red Line: Find the red line.

Yellow wire: Find the white wire.

Black wire: Find the blue wire.

Fan motor 16 inches

Floor standing 16 inches HATARI Hatari

General 16″ floor standing fan motor with capacitor, fan spare parts
