6/12 Circuit Car Boat Blade Fuse Box Block Holder LED Indicator 12V 32V Auto Marine Waterpro

6-way 12-way Car Boat Blade Fuse Box Block Holder LED Indicator 12V 32V Auto Marine Waterproof Power Distribution Panel Board
mangyaring Pansin Mayroon Tayong Dalawang Modelo:
6-way Fuse Box at 12-way Fuse Box

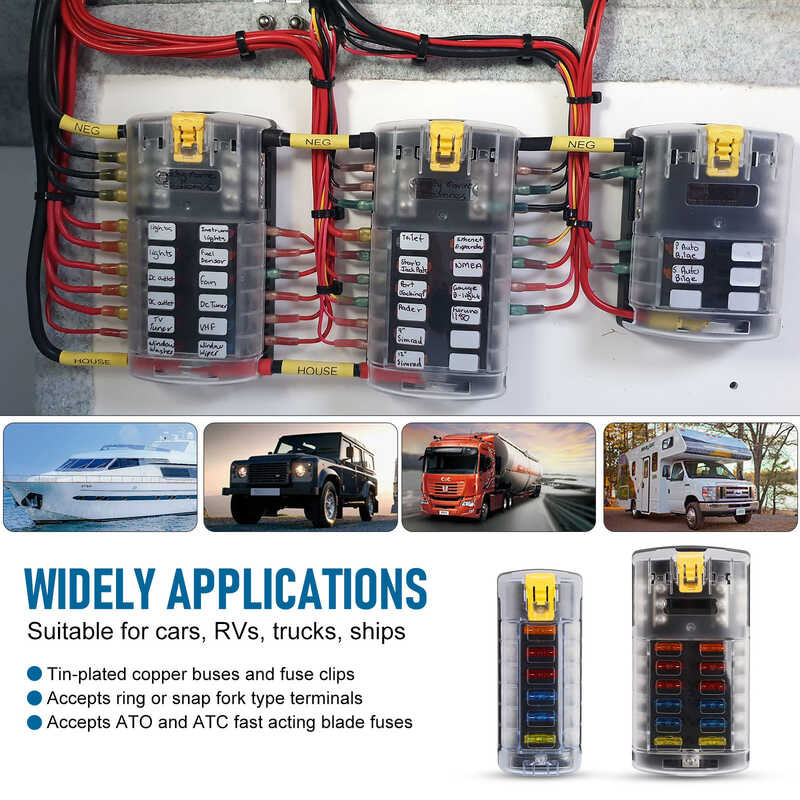

installasyon Ng Mga Produkto: Kotse, Bahay, RVS, Buses, Yachts, Bangka, Atbp.

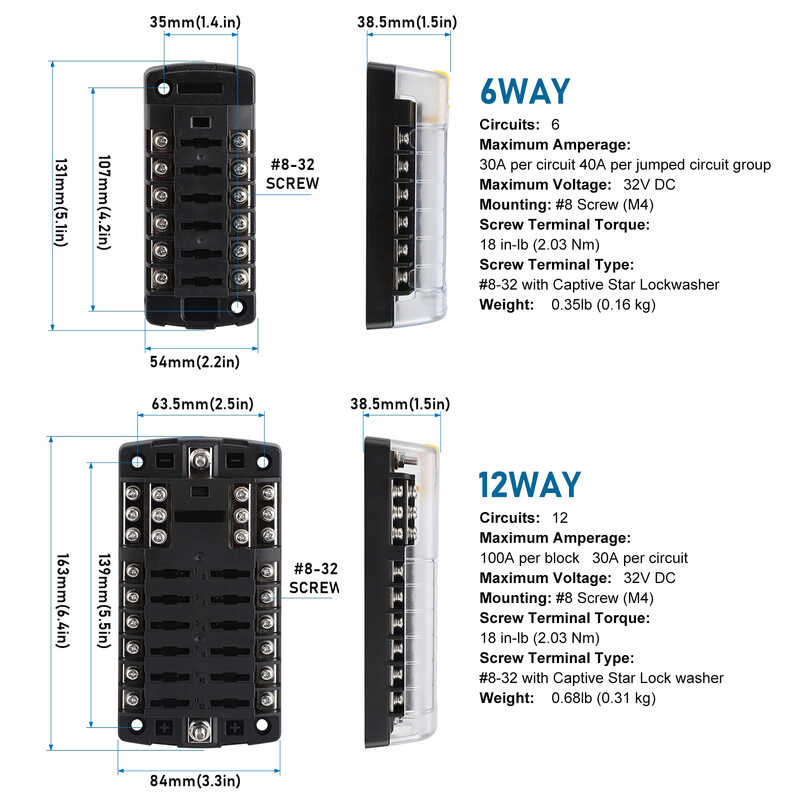

mga Circuits 12:
ang Pinakamalaking Amperage Maximum Amperage Ratings Ay Depende Sa Paggamit Ng Tamang Fuses at Wire Para Sa Isang Nabanggit Na Application. 100A Sa Bawat Bloke
30a Sa Bawat Circuit
ang Pinakamalaking Voltage 32V Dc
i-mount Ang #8 Screw (m4)
negative Bus #10-32 Stud
positive Bus #10-32 Stud
recommended Torque 24 In-lb (2.71 Nm)
screw Terminal Torque 18 In-lb (2.03 Nm)
screw Terminal Type # 8- 32 Screws with Captive Star Lock Washer
weight 0.75 Lb (0.34 Kg)
mga Circuits 6:
ang Pinakamalaking Amperage Maximum Amperage Ratings Ay Depende Sa Paggamit Ng Tamang Fuses at Wire Para Sa Isang Nabanggit Na Application. 30A Sa Bawat Circuit
40a Sa Bawat Grupong Jumped Circuit
ang Pinakamalaking Voltage 32V Dc
i-mount Ang #8 Screw (m4)
screw Terminal Torque 18 In-lb (2.03 Nm)
i-screw Terminal Type # 8-32 Na May Captive
star Lockwasher
weight 0.35lb (0.16 Kg)
6-way Fuse Box:
12-way Fuse Box:
