4 in 1 Multifunction Gauge With Warning Light Oil Pressure+Water Temperature+Fuel Level+Voltme A

Features:
* The world’s newest 4 in 1 multifunction gauge.
* Convenient Installation by multi-plug socket connecting way.
* The gauge has the advantages of high precision, quick location confirmation and short start up time.
* Most importantly, the gauge is easy to setup, and can be used in all vehicles, boats and off-road vehicles.
Technical Data:

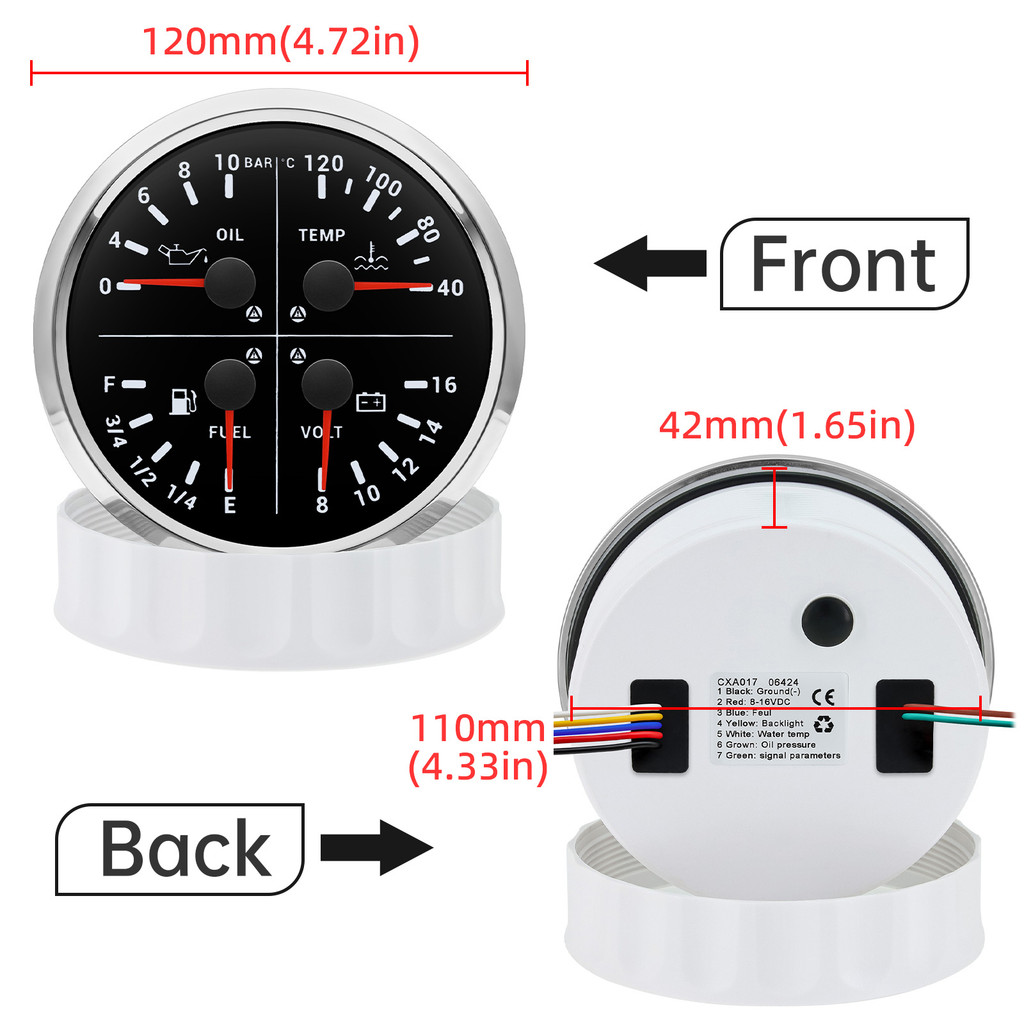

* Fixing dimension: 110mm
Features:

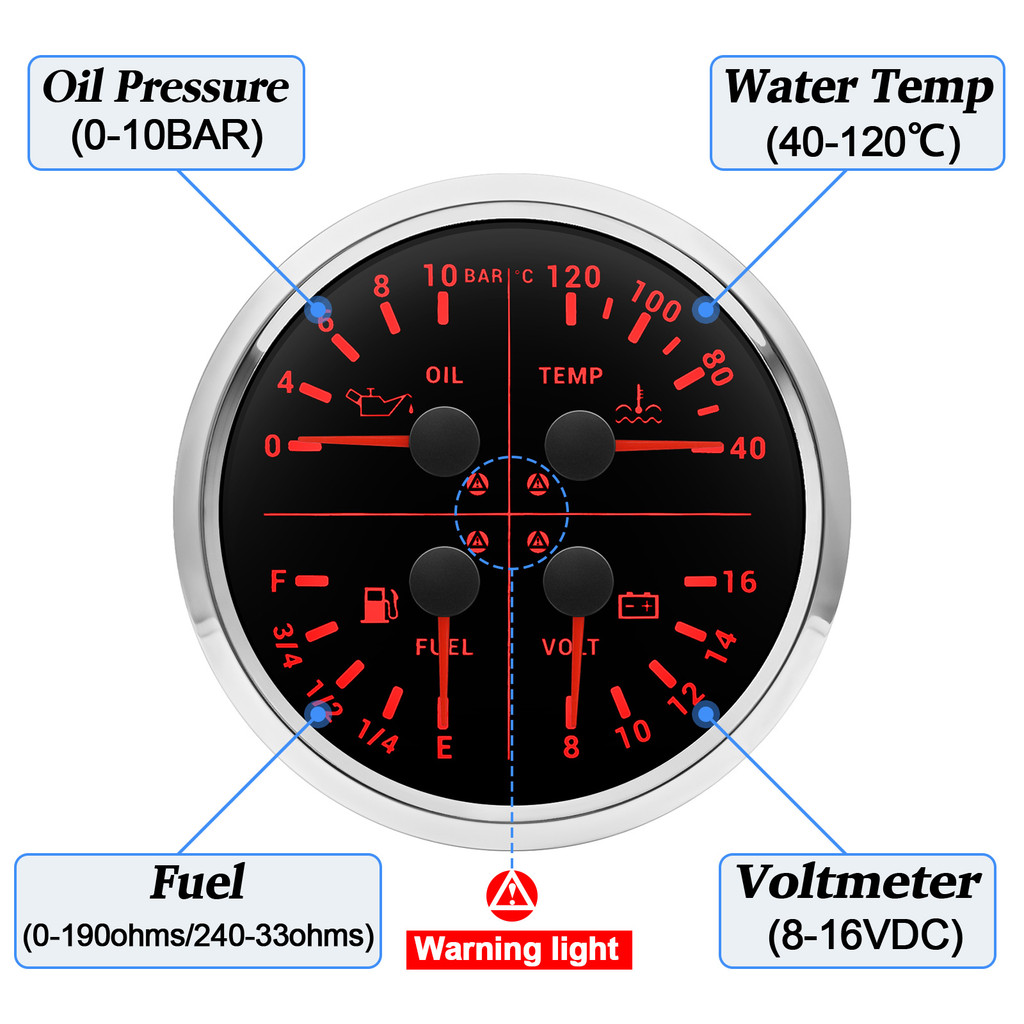

Engine oil pressure:0-150psi
Engine temperature:100-250 °F
Battery voltage:8-16V
Fuel level:0~100%
Alarm message
1.Fuel< 13% alarm 2.0il pressure<0.8bar alarm 3.Water temp.>95°C alarm

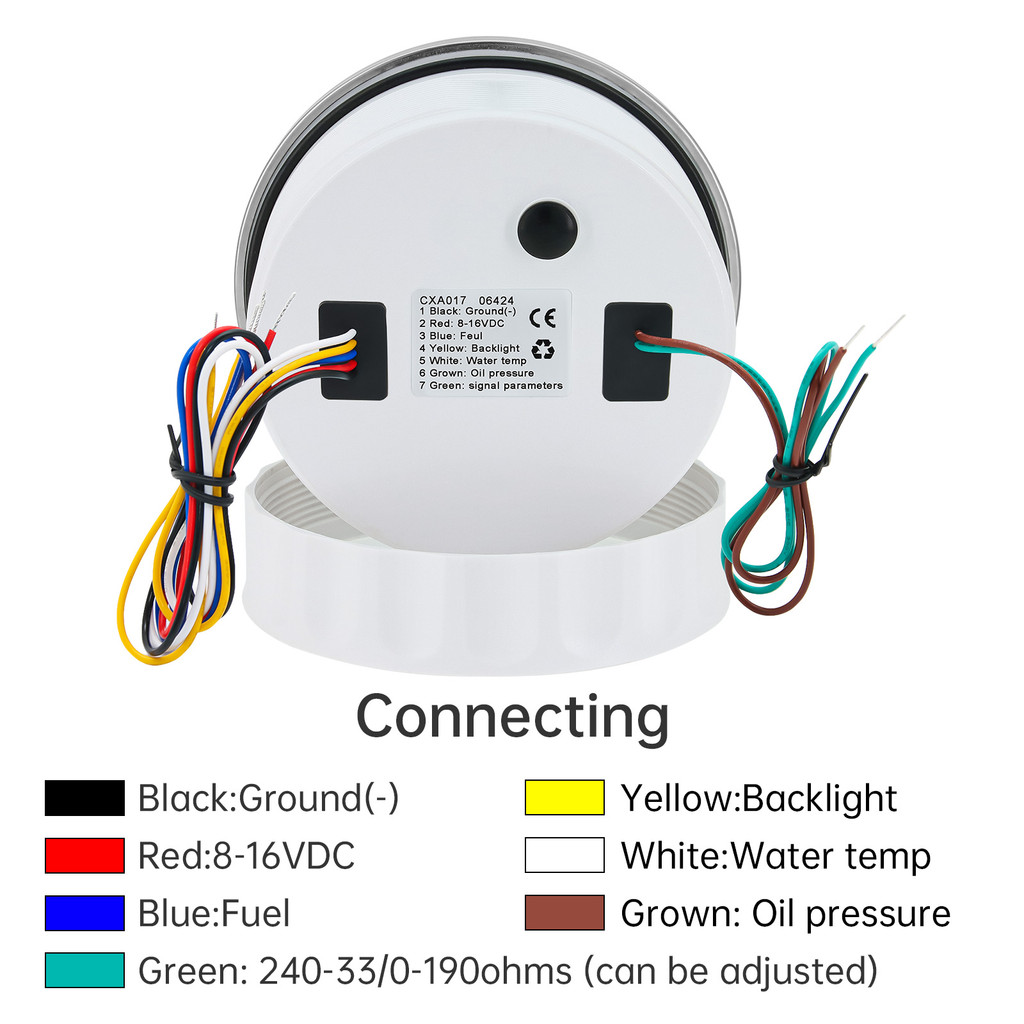

4.Voltage< 11.5V alarm Input Signal: Oil pressure sensor:10~184ohm Temperature sensor:301~22ohm Fuel level sensor:0-190ohm/240~30ohm Environmental Operating Voltage:8 to 16Volts(DC) Power Consumption:<120mA OperatingTemperature:-20~70degrees Storage Temperature: -30-80degrees Degree of Protection: lp67 Technical parameters: Operatingvoltage:8~16VDC Operating current: 100mA Operatingtemperature:-30~80°C Storage temperature:-40~85°C Package Included: 1 x 4 IN 1 Gauge
